Generator Day Tanks

Generator day tanks (designed to store fuel for emergency generators) are available in any size under 2,000 gallons. Please click the above images to view product specifications.

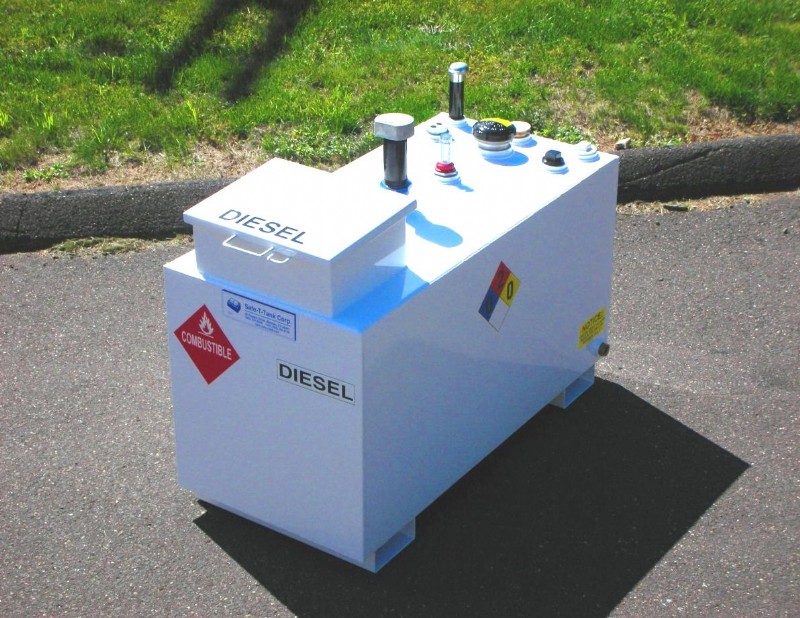

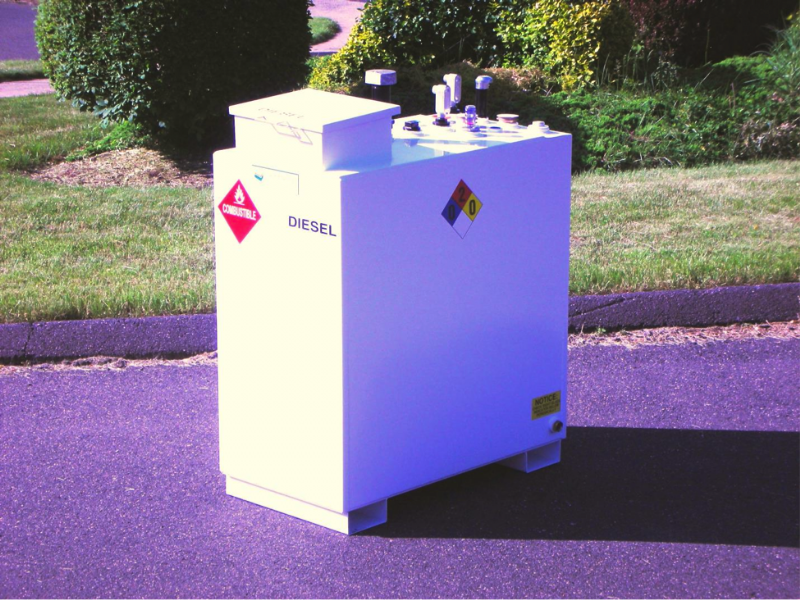

Model HS-120-SPB-2A

Model HS-120-SPB-2A

120 gallon double wall generator day tank with fill box, ½ duplex fitting for supply and return connections, high level and low level switch, spare fittings, venting and level gauge. 48 1/4" long, 37 1/2" wide, 26" high, 575# empty.

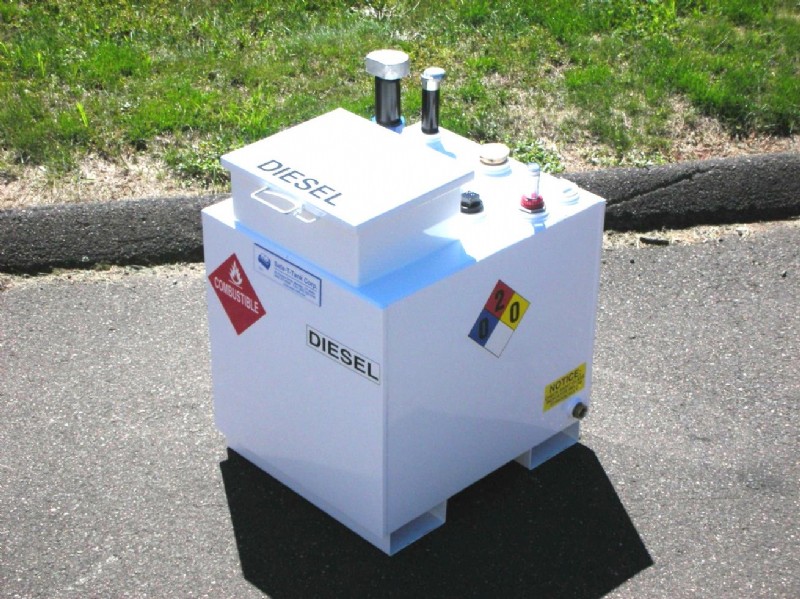

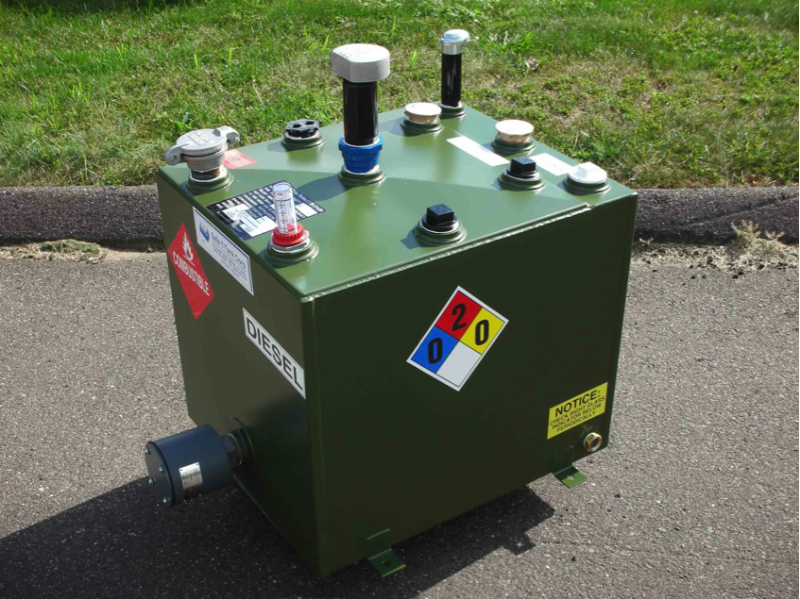

Model LS-50-2A

Model LS-50-2A

50 gallon double wall generator day tank with venting, level gauge, duplex fitting for supply and return connection with immersion heater (optional). Optional mounting bracks and green paint shown. 27 1/2" long, 23 1/4" wide, 23 3/4" high, 300# empty. With options shown, (immersion heater).

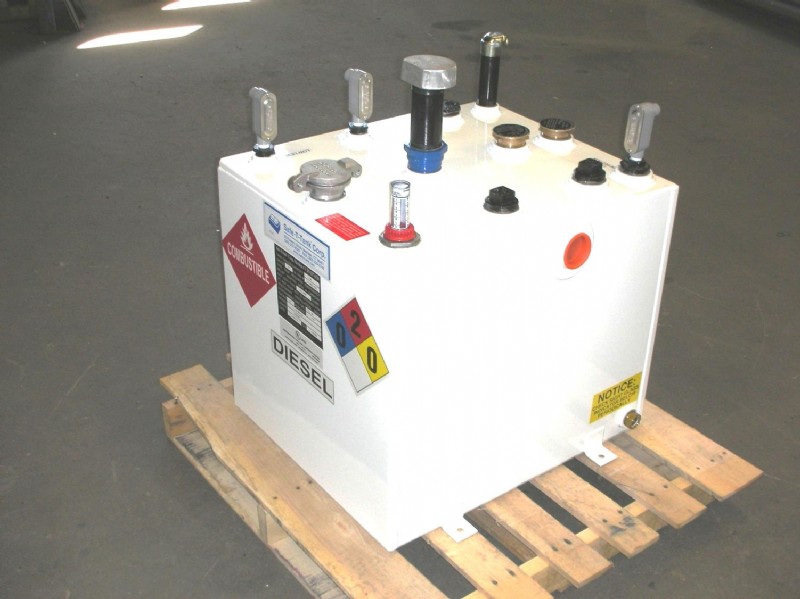

Model LS-50-2A

Model LS-50-2A

50 gallon double wall generator day tank with high level & low level switches with duplex fitting, venting and level gauge. 27 1/2" long, 23 1/4" wide, 23 3/4" high, 300# empty.

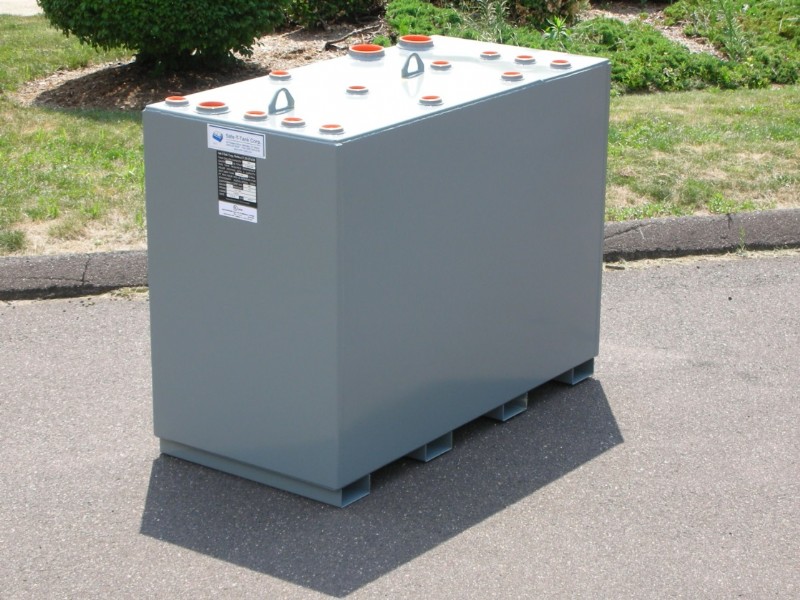

Model LSX-300-2A

Model LSX-300-2A

300 gallon double wall generator day tank with level gauge, low level switch, lifting eyes. 59 1/4" long, 47 1/4" wide, 26 1/8" high, 775# empty.

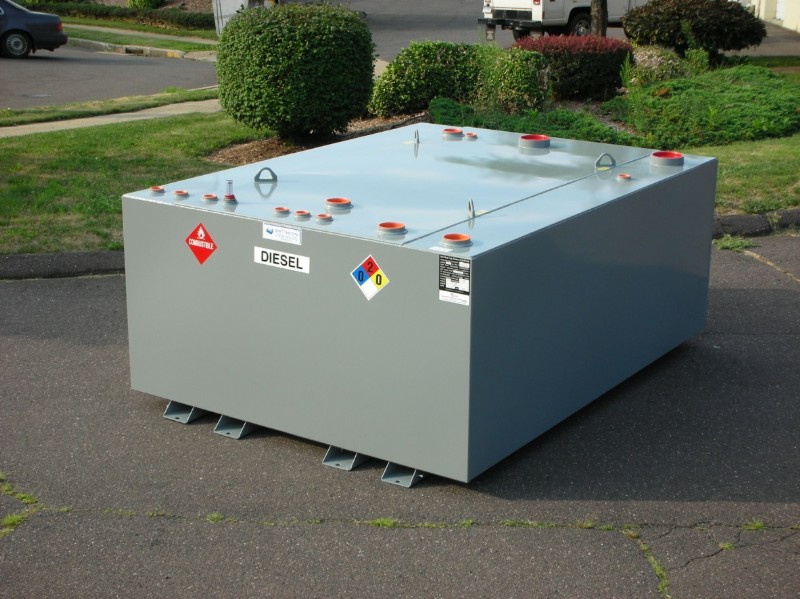

Model LSX-1000-2A

Model LSX-1000-2A

1,000 gallon double wall tank with fittings placed per customer’s request. 89" long, 71 3/4" wide, 63 1/2" high, 1,975# empty.

Model HSX-500-2A

Model HSX-500-2A

500 gallon double wall generator day tank with fittings placed per customer’s request. 58 1/2" long, 36" wide, 61 3/4" high, 1,250# empty.

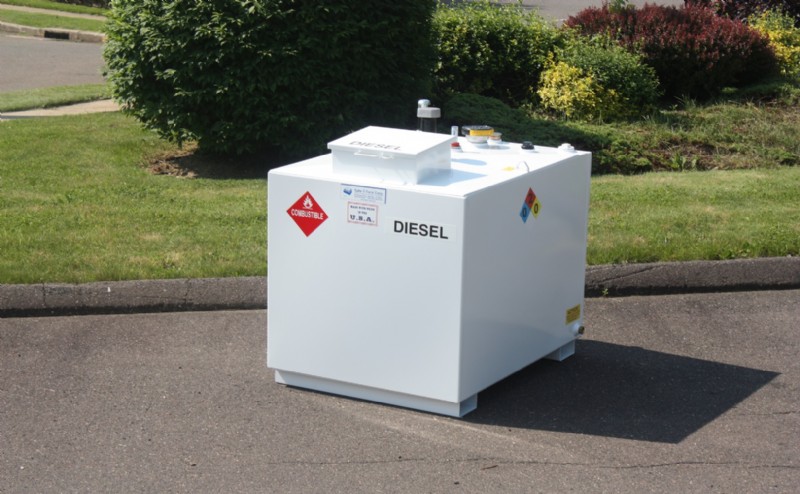

Model LS-50-SPB-2A (1 of 2)

Model LS-50-SPB-2A (1 of 2)

50 gallon double wall generator day tank with duplex fitting, fill box, venting and level gauge. 27 1/2" long, 23 1/4" wide, 23 3/4" high, 300# empty.

Model LS-50-SPB-2A (2 of 2)

Model LS-50-SPB-2A (2 of 2)

50 gallon double wall generator day tank with duplex fitting, fill box, venting and level gauge. 31 1/2" long, 20 1/4" wide, 23" high, 300# empty.

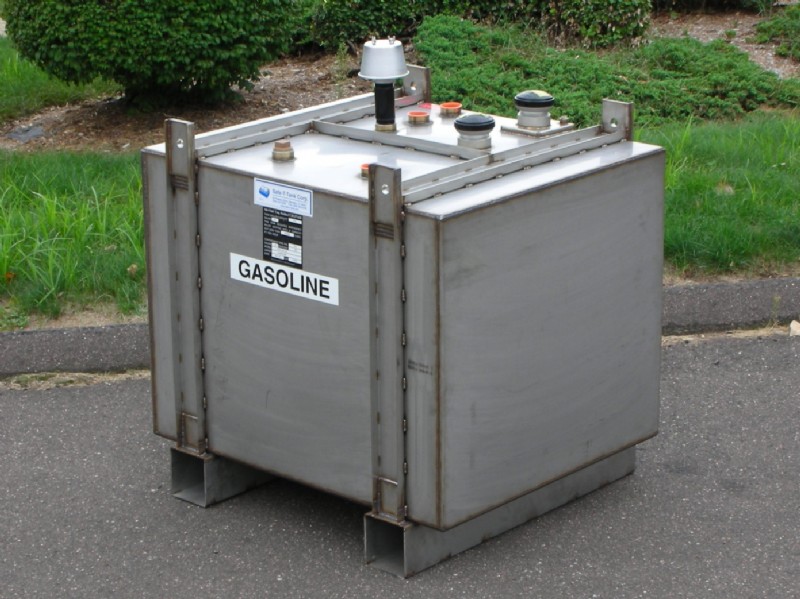

Model LS-100-SS-2A

Model LS-100-SS-2A

100 gallon double wall generator day tank 304 stainless steel with mounting brackets. Standard equipment duplex fitting and venting. 4'-0" long x 1'-11 1/4" wide x 2'-3" high, 475# empty.

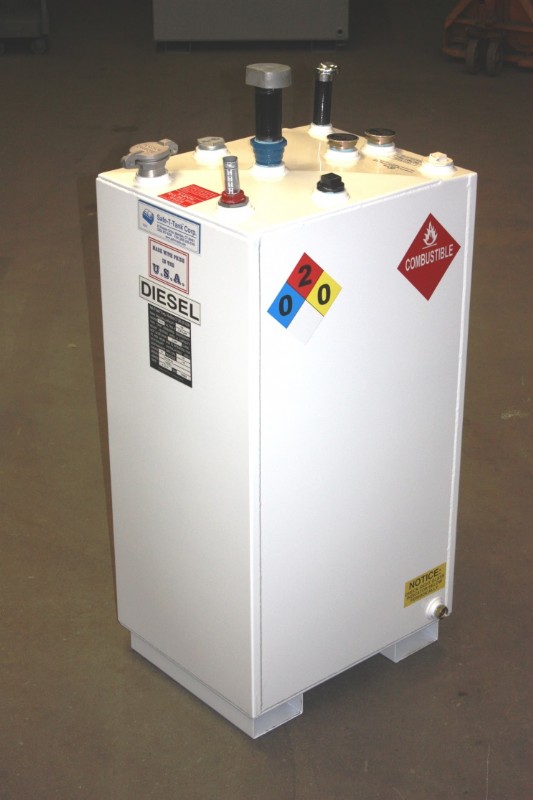

Model HSX-100-2A

Model HSX-100-2A

100 gallon double wall generator day tank with duplex fitting, venting and level gauge. 30" long, 30" wide, 48" high, 475# empty.

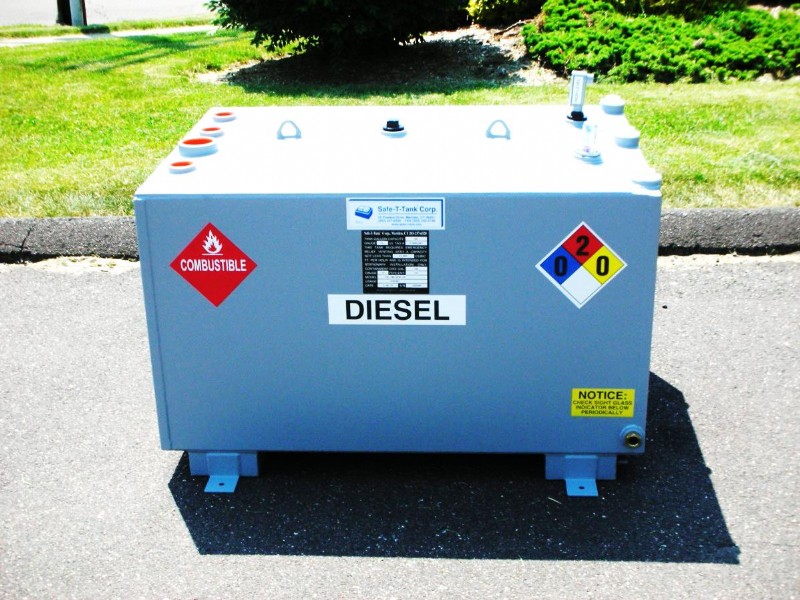

Model LS-250-SPB-2A

Model LS-250-SPB-2A

250 gallon double wall generator day tank with 2" duplex fitting, spill prevention fill box, venting and level gauge. 48 1/4" long, 37 1/4" wide, 40 1/4" high, 675# empty.
